washing machine motor wash motor winding coil turn data full information.

washing machine motor wash motor winding coil turn data full information.

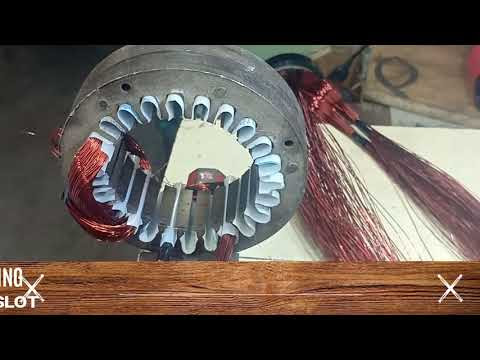

Here we have shown how to rewind a  WASHING MACHINE WASH MOTOR REWINDING .motor.

How much will be its pitch, which will be the number of the Standard wire gaze,and all abouts its TURNS how many its slots it will be And how much will he be able to do? You can know about it completely and go to the link provided by visiting the video. And do not forget to subscribe to email together. And also subscribe to our channel on YouTube.

WATTS=370
CAPACITOR=12

HERE IS THE FULL WINDING DATA OF THIS MOTOR

Slot=24                       1-4  ,     1-6
running turn               140       280

Running swg      =    30
Copper weight   =     300 GM

pitch                         1=4,     1-6,
Staring turn               130      260

Starting swg        =       30

Copper weight    =            250 gm

Core lenth     = 1" 4 SOOT
Stater dia      =


connection =normal
