Tulu pump 0.5 HP motor winding data water motor winding.

Tulu pump 0.5 HP motor winding data water motor winding.

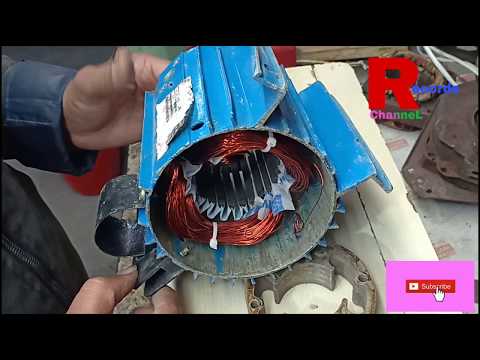

Here we have shown how to rewind a 0.5 hp water pump motor  motor.

How much will be its pitch, which will be the number of the wire, how many slots it will be And how much will he be able to do? You can know about it completely and go to the link provided by visiting the video. And do not forget to subscribe to email together. And also subscribe to our channel on YouTube.

                                                WATCH FULL VIDEO HERE

HERE IS THE FULL WINDING DATA OF THIS MOTOR

Slot=24

Running pitch                1-8,    1-10  ,     1-12
running turn                      80       80           80

Running swg      =    24
Copper weight   =     450

pitch                              1-8,    1-10  ,     1-12
Staring turn                    100     110        110

Starting swg        =       27
Copper weight    =       350 gm

Core lenth     = 2"2soot

inner dia 1"5 soot

out dia 3"5 soot.
