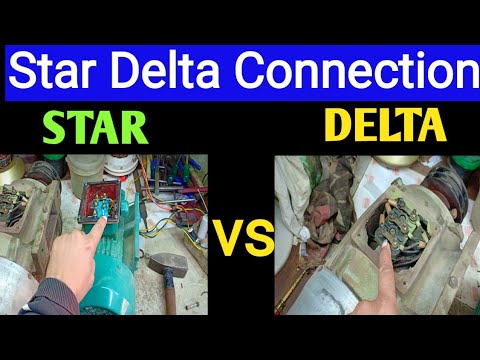

Star delta connection

in this post we have describe star and Delta connection.

star connection is for 1-3 HP 3phase motor.and

Delta connection is for above 5hp motor

Three phase induction motor has a stator and a rotor. There is 3 phase winding in the stator. Which is added with AC supply of 3 phase. The telin induction motor requires much more power to get started. Compared to turning off the ocean, if away from full load current, then the current running full load increases by 6 to 7 times. The motor can be hot due to lightening and winding can also burn. Motor should be used for motor vehicles so there is no danger or damage to the motor

When creating Star Delta Starter, it has 3 contractors, 1 inferior load relay, 1 NO push button, 1 NC push button and a timer. The timer is used to close the Star Contractor and after a short time the Delta Contractor is started. Two types of wiring are done in the Star Delta Starter.

As we have told, Star Delta Starter has two types of wiring, the first of which is the power wiring that is added to the motor. Where Star Delta Starter is used, you will see six terminals in that motor and you will have to connect them with 6 stars that come from Star Delta Starter.
